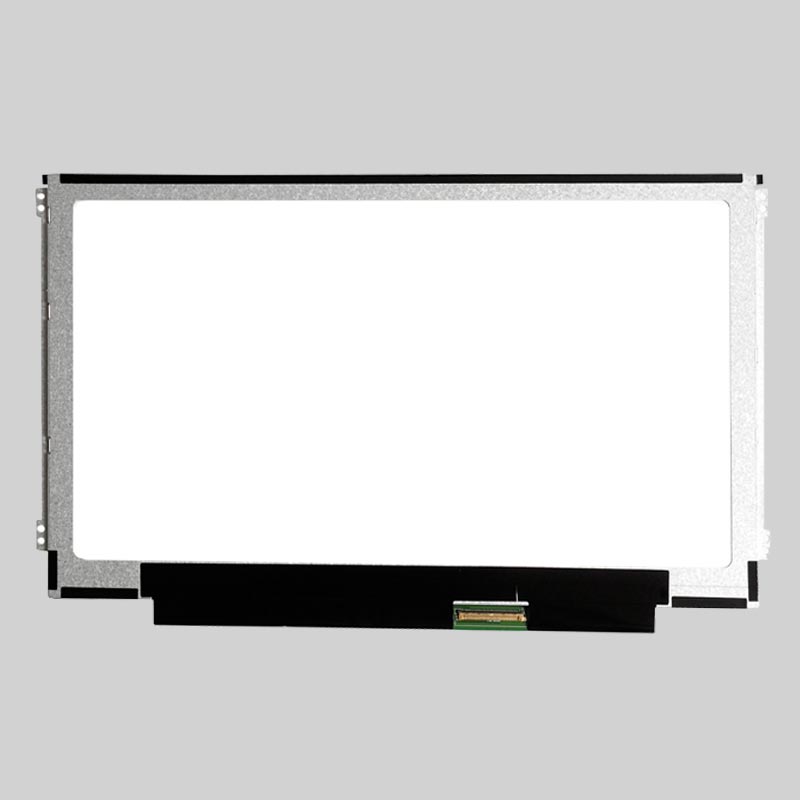

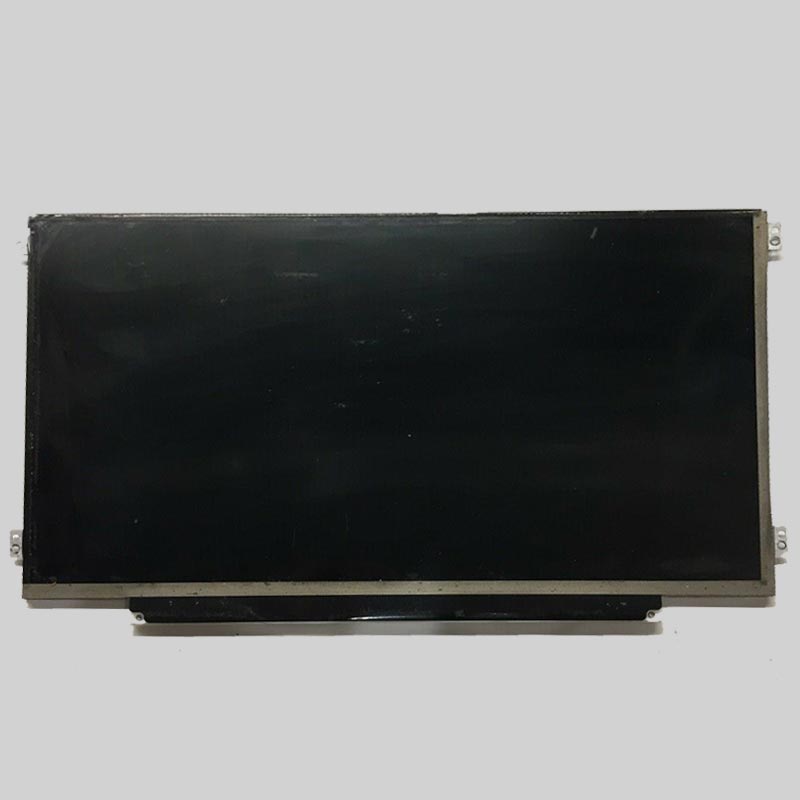

Screen Non-Touch B116XW03.V0 AUO 11.6 LCD Display
Regular price
$80.00 AUD
Regular price
$119.00 AUD
Sale price
$80.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
| Manufacturer | AUO | Model Name | B116XW03 V0 (AUO305C) |
|---|---|---|---|
| Screen Size | 11.6 inch | Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 135PPI | Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 256.125 × 144 (H×V) | Outline(mm) | 278 × 168 × 3.6 (H×V×D) |
| Bezel Area(mm) | - | Treatment | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.) |
| Luminance | 200 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) | Response | 3/5 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock | Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC | Backlight | WLED , 10K hours , With LED Driver |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) | Used for | |
| Refresh Rate | 60Hz | Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 40 pins Connector | ||
| Voltage Supply | 3.3V (Typ.) | ||
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||
