AUO

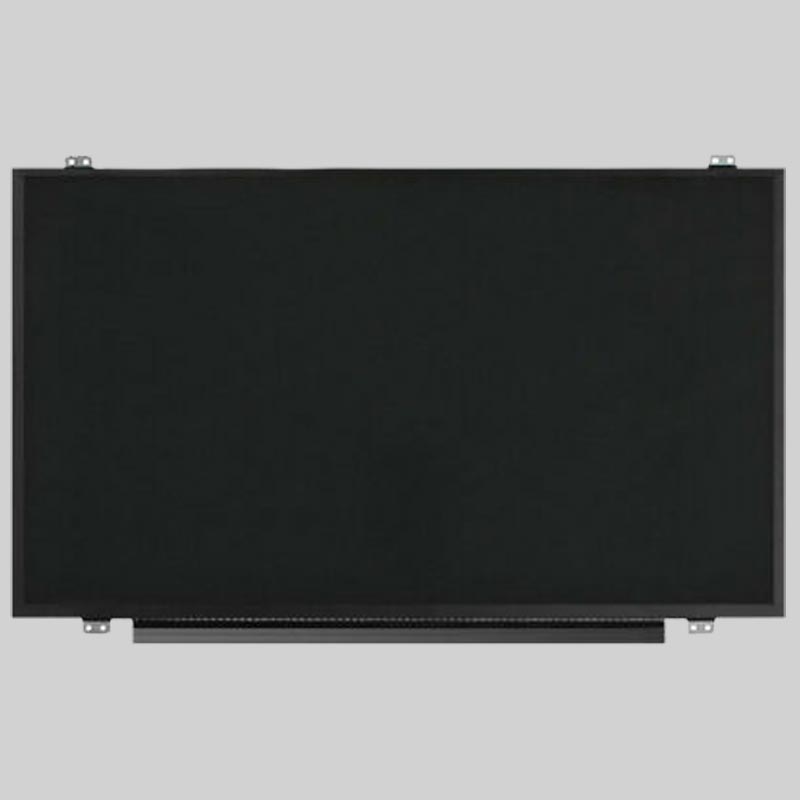

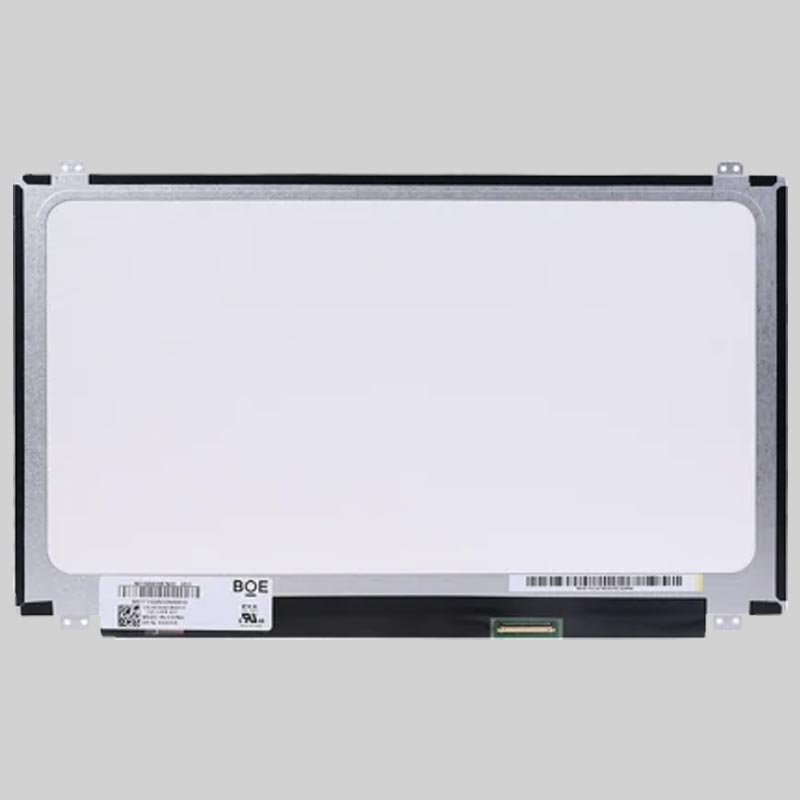

Screen Non-Touch B140HAK02 AUO 14.0" LCD Display
Regular price
$180.00 AUD
Regular price
$215.00 AUD
Sale price
$180.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
| Brand | AUO |
| Model | B140HAK02.0 |
| Diagonal Size | 14.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 157PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 309.14(H)×173.89(V) mm |
| Outline Dim. | 320.4(H)×205.1(V) mm |
| Luminance | - |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch |
| Interface Type | eDP (2 Lanes) Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
