AUO

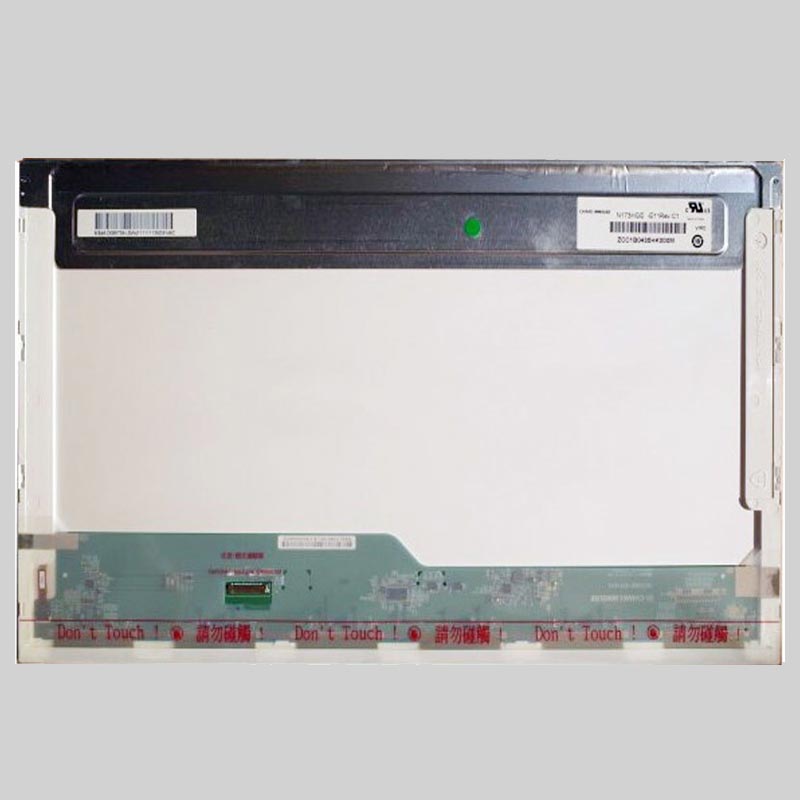

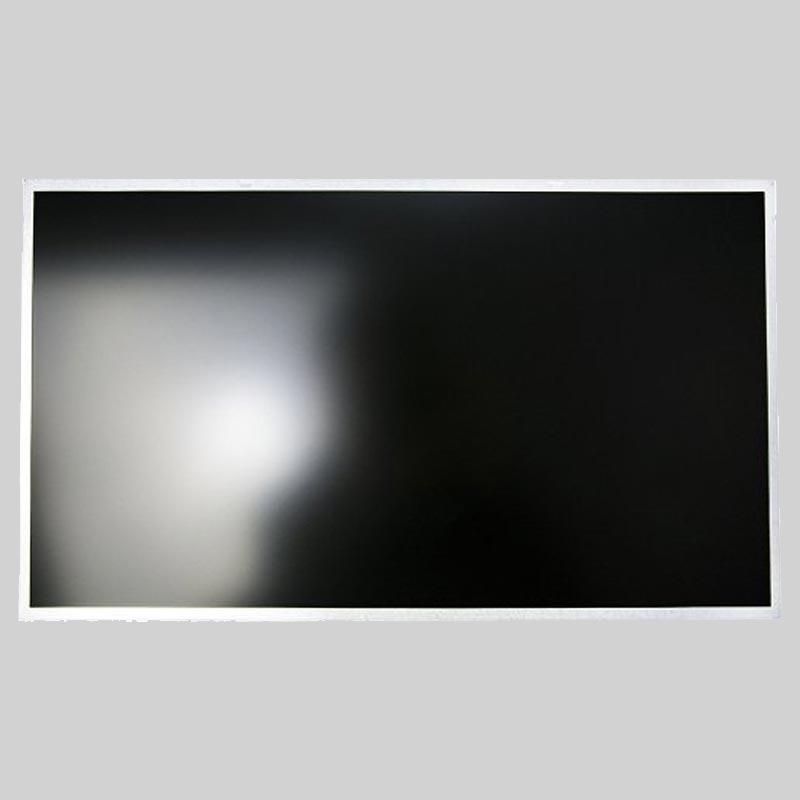

Screen Non-Touch B173HTN01.1 AUO 17.3" LCD Display
Regular price
$205.00 AUD
Regular price
$265.00 AUD
Sale price
$205.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
| Brand | AUO |
| Model | B173HTN01.1 (AUO119D) |
| Diagonal Size | 17.3 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 127PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 381.888(H)×214.812(V) mm |
| Outline Dim. | 398.1(H)×233.3(V) ×6(D) mm |
| Bezel Area | - |
| Treatment | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 72% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
