Innolux

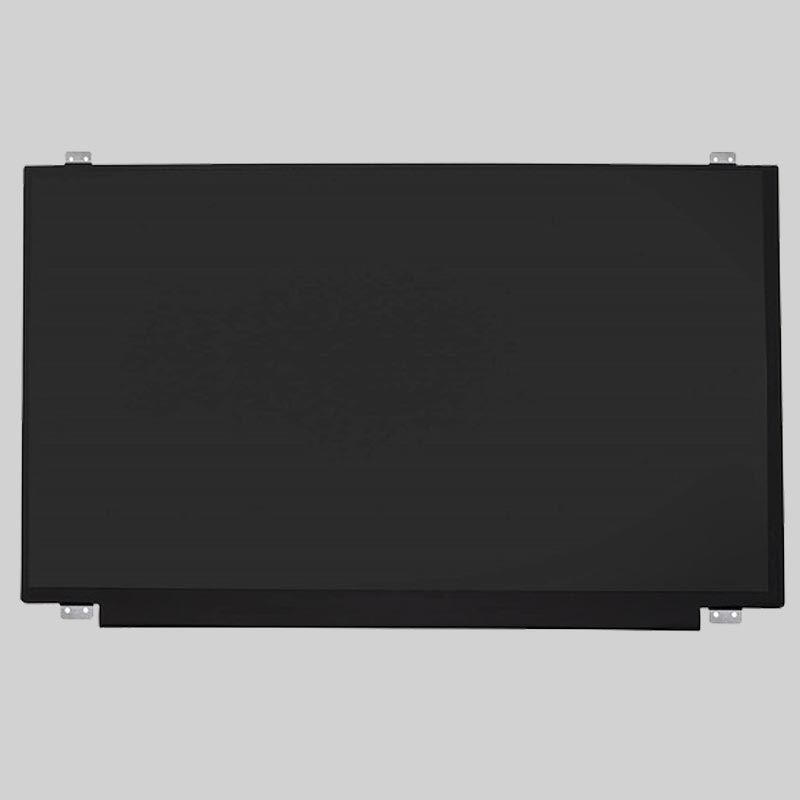

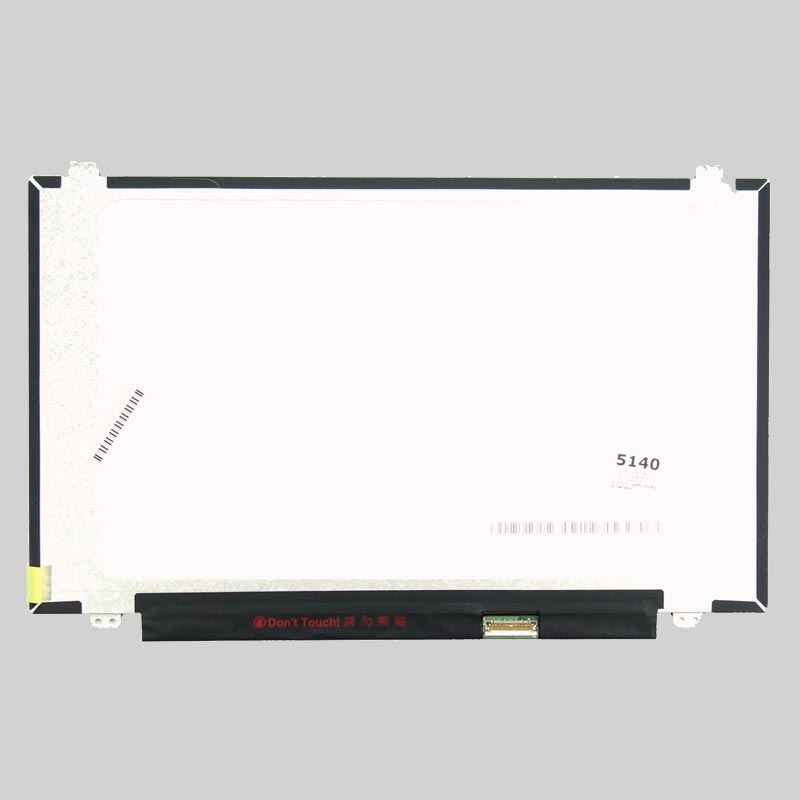

Screen Non-Touch N140HCE-EBA Innolux 14.0" LCD Display
Regular price
$164.00 AUD
Regular price
$205.00 AUD
Sale price
$164.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
|
Manufacturer
|
Innolux
|
Model Name
|
N140HCE-EBA (CMN1486)
|
|---|---|---|---|
|
Screen Size
|
14.0 inch
|
Screen Type
|
LCM , a-Si TFT-LCD
|
|
Pixel Number
|
1920(RGB)×1080 (FHD) 157PPI
|
Arrangement
|
RGB Vertical Stripe
|
|
Active Area(mm)
|
308.851 × 173.73 (H×V)
|
Outline(mm)
|
320.4 × 198.6 × 3 (H×V×D)
|
|
Bezel Area(mm)
|
-
|
Treatment
|
Glare (Haze 0%), Hard coating (3H)
|
|
Luminance
|
220 cd/m² (Typ.)
|
Contrast Ratio
|
800 : 1 (Typ.) (TM)
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
Response
|
14/11 (Typ.)(Tr/Td) ms
|
|
Good View at
|
Symmetry
|
Work Mode
|
AAS, Normally Black, Transmissive
|
|
Color Depth
|
262K 45% NTSC
|
Backlight
|
4 strings WLED , 15K hours , With LED Driver
|
|
Outline Shape
|
Slim (PCBA Flat, T≤3.2mm)
|
|
|
|
Refresh Rate
|
60Hz
|
Touchscreen
|
Without
|
|
Signal Type
|
eDP (2 Lanes) , eDP1.2 , 30 pins Connector
|
||
|
Voltage Supply
|
3.3V (Typ.)
|
||
|
Max. Ratings
|
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
|
||
