BOE

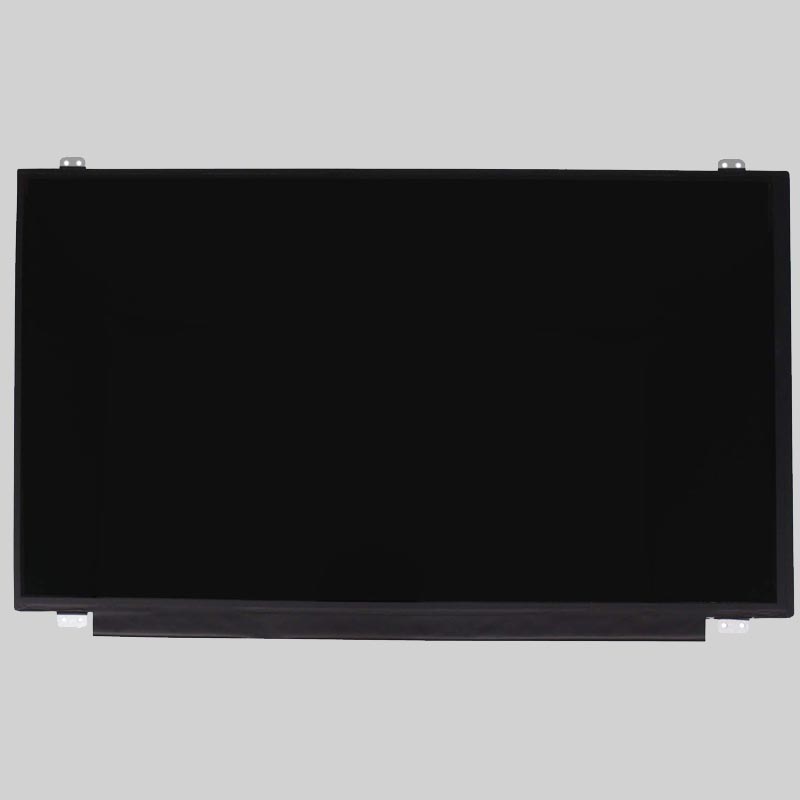

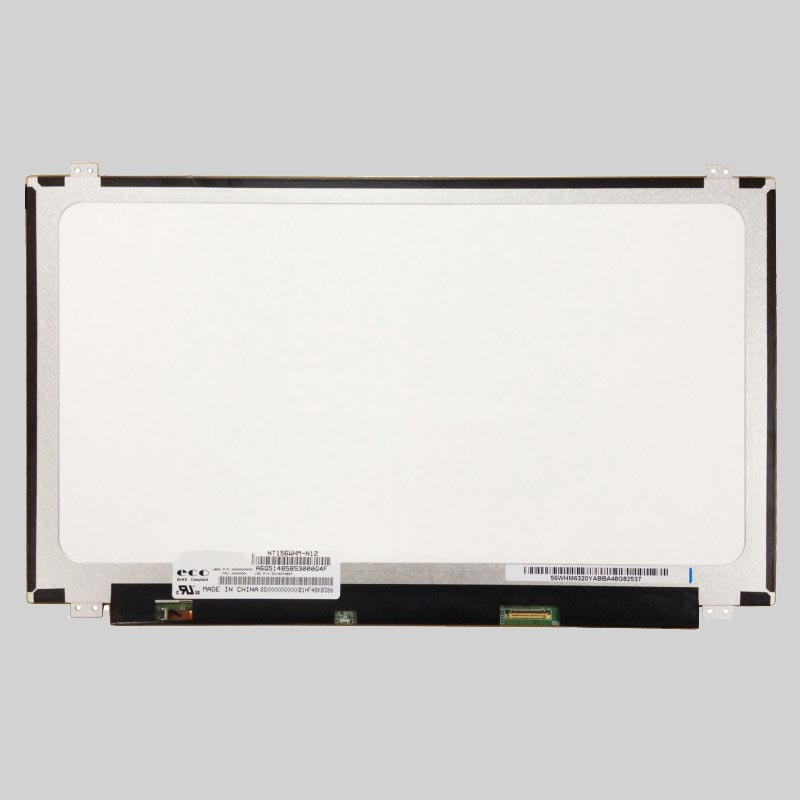

Screen Non-Touch NT156WHM-N12 BOE 15.6" LCD Display
Regular price
$115.00 AUD
Regular price
$149.00 AUD
Sale price
$115.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Manufacturer
- BOE
- Model Name
- NT156WHM-N12 (BOE066E)
- Screen Size
- 15.6 inch
- Screen Type
- LCM, a-Si TFT-LCD
- Pixel Number
- 1366(RGB)×768 (WXGA) 100PPI
- Arrangement
- RGB Vertical Stripe
- Active Area(mm)
- 344.232 × 193.536 (H×V)
- Outline(mm)
- 359.5 × 223.8 × 3.8 (H×V×D)
- Bezel Area(mm)
- -
- Treatment
- Glare (Haze 0%)
- Luminance
- 200 cd/m² (Typ.)
- Contrast Ratio
- 500 : 1 (Typ.) (TM)
- Viewing Angle
- 45/45/20/40 (Typ.)(CR≥10)
- Response
- 12 (Typ.)(Tr+Td) ms
- Good View at
- 6 o'clock
- Work Mode
- TN, Normally White, Transmissive
- Color Depth
- 262K 45% NTSC
- Backlight
- 9S4P WLED , 15K hours , With LED Driver
- Outline Shape
- Flat (PCBA Flat, T3.4~4.0mm)
- Refresh Rate
- 60Hz
- Touchscreen
- Without
- Signal Type
- eDP (1 Lane) , eDP1.2 , RBR (1.62G/lane) , Connector 30 pins
- Voltage Supply
- 3.3V (Typ.)
- Max. Ratings
- Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
