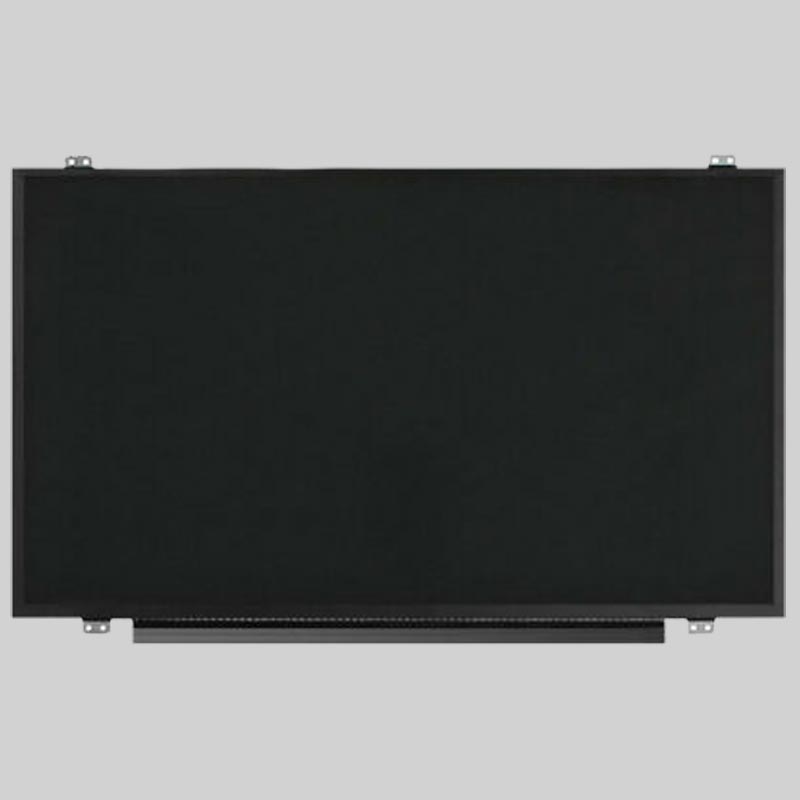

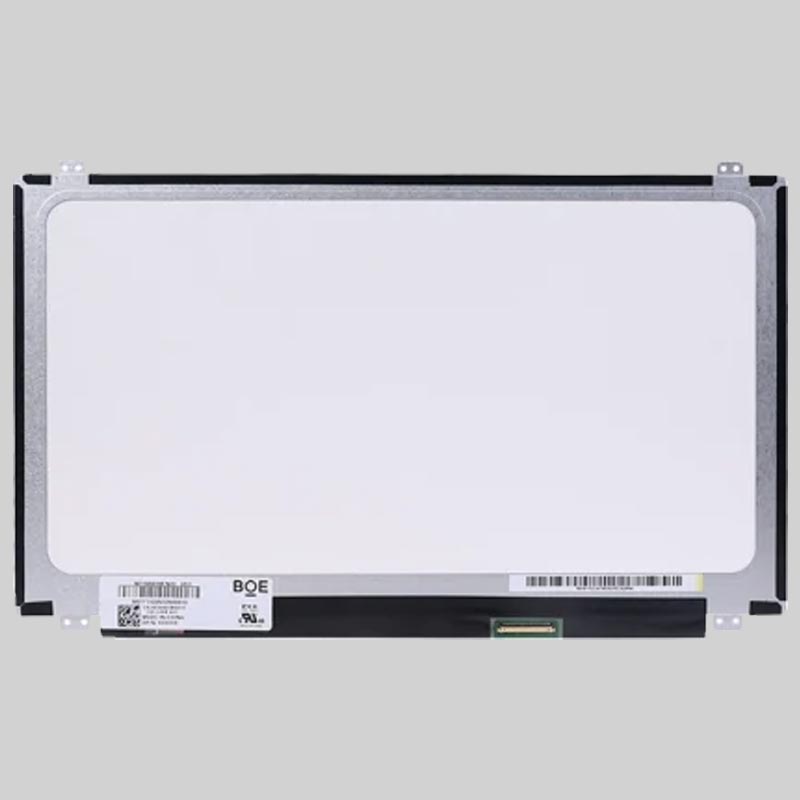

Screen Non-Touch NT156WHM-N10 BOE 15.6" LCD Display
Regular price
$128.00 AUD
Regular price
$156.00 AUD
Sale price
$128.00 AUD
Unit price
per
Brand | BOE |
Model | NT156WHM-N10 |
Diagonal Size | 15.6 inch |
Type | a-Si TFT-LCD, LCM |
Pixel Format | 1366(RGB)×768 [WXGA] 100PPI |
Configuration | RGB Vertical Stripe |
Active Area | 344.232(H)×193.536(V) mm |
Outline Dim. | 359.5(H)×223.8(V) ×3.8(D) mm |
Bezel Area | - |
Treatment | Glare (Haze 0%) |
Luminance | 220 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) |
View Direction | 6 o'clock |
Response Time | 12 (Typ.)(Tr+Td) |
Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K 45% NTSC |
Light Source | WLED [9S4P] , 15K hours , With LED Driver |
Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
